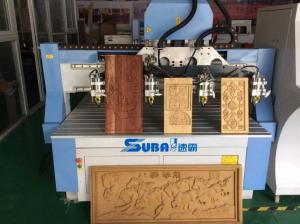

Solid Wood Cabinet Door CNC Carving Machine Four Spindle 1618F4

  • 1
  • 2

Brand Name : SUBA

Model Number : SUBA1618

Certification : CE

Place of Origin : China

MOQ : 1

Price : communication

Payment Terms : L/C,T/T

Supply Ability : 100set

Delivery Time : 5-8 work days

Packaging Details : Wooden box packaging

Type : CNC router

X-Axis Travel : 1600mm

Table Size : 1600mm x1800mm

Z-Axis Travel : 200mm

Y-Axis Travel : 18000mm

Table : Aluminum

Contact Now

Solid wood cabinet door CNC engraving machineFouur spindle

Product Description

1. The bed lathe is made of cast steel, analyzed and designed with FEA, relieving stress, so the working table is more stable

2. The gantry are steel, could handle more heavy duty work and with a longer life.

3. Double linear bearing to drive the Y shaft, which improve speed and more stable, it can cut repeatedly.

4. Computer control and DSP control, either is ok.

5. High speed and efficiency, empty speed is up to 25000mm/min, for engraving wave plank, the speed can reach 20000mm/min.

Processing products

Suitable for production items: solid wood, cabinet doors, screen relief, board furniture and other non-metallic materials, as well as non-ferrous metals such as copper and aluminum, cutting and carving processing.

Parameter

Model

SUBA CNC 1618-4

Working area

1600*1800*200

X,Y,Z guide rail

X,Y Rack Gear Z Ball Screw

Driving motors

Servo motor

Spindle motor

2.2Kw inverter-driven spindle motor cooled by water*4

Rotating speed

24000rpm

accuracy

±0.04mm

Reposition Accuracy

±0.02mm

Max moving speed

25000mm/min

Max engraving speed

20000mm/min

Engraving tools

￠3.175mm/￠6mm/￠12.7mm

Software

Type3,Artcam, Ucancam, Caxa, Mastercam, UG

Solid Wood Cabinet Door CNC Carving Machine Four Spindle 1618F4
