Robots carve prosthetic limbs

The SUBACNC1020 seven-axis robot engraving machine system is composed of a robot arm controlling an electric spindle (which works at any angle within the machining range of the mechanical arm) and software for controlling the operation of the mechanical arm and the movement of the electric spindle. Under the principle of safety first, it is simple to use and produces high-quality products.
The robot arm has 6 rotational axes. The workpiece is installed on a rotating workbench, which acts as the 7th axis of the robot engraving machine system. The rotating workbench and the mechanical arm are controlled by the system to complete the fine engraving of the three-dimensional art workpiece. In addition, it can realize the linkage with the SUBACNC1026 three-dimensional art wood engraving machine to complete the processing of more complex workpieces. It realizes both high-efficiency and high-precision processing.

It is widely used in medical, sculpture, clothing and architectural professions.

Performance Parameters
Model	SU-1020
Working area	Φ1000mm*H2000mm
Max load (KG)	3000
Rated load (KG)	2000
Reach distance (mm)	2200
Number of axis	7
Reposition	±0.03
Protection class	IP65(*67)
Arm weight(KG)	60
Spindle	6KW Italy HSD spindle cooled by water.
Motor/Driver	Japan YASKAWA Servo motor and Servo Driver
Inventor	7.5KW imported inventor
Robot controller	CS8C
Installation mode	Landmark/ hanging/ sticky
Scope of work axis 1	±180°
Scope of work axis 2	±127.5°
Scope of work axis 3	±152.5°
Scope of work axis 4	±270°
Scope of work axis 5	+132.5°/-122.5°
Scope of work axis 6	±270°
Max speed of axis 1	435°/s
Max speed of axis 2	385°/s
Max speed of axis 3	500°/s
Max speed of axis 4	995°/s
Max speed of axis 5	1065°/s
Max speed of axis 6	1445°/s
Delivery time	60 working days
Tool Diameter	￠2 ----￠20
Application	Mainly used for 3D status.

Product Tags:

medical Foam Engraving Machine



Prosthetic Limbs Foam Engraving Machine



sculpture Foam Engraving Machine

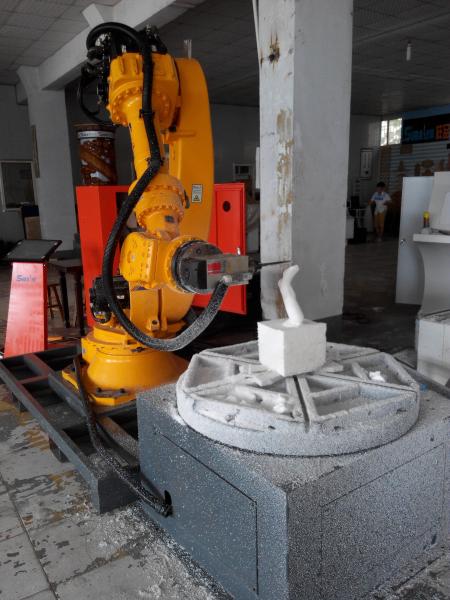

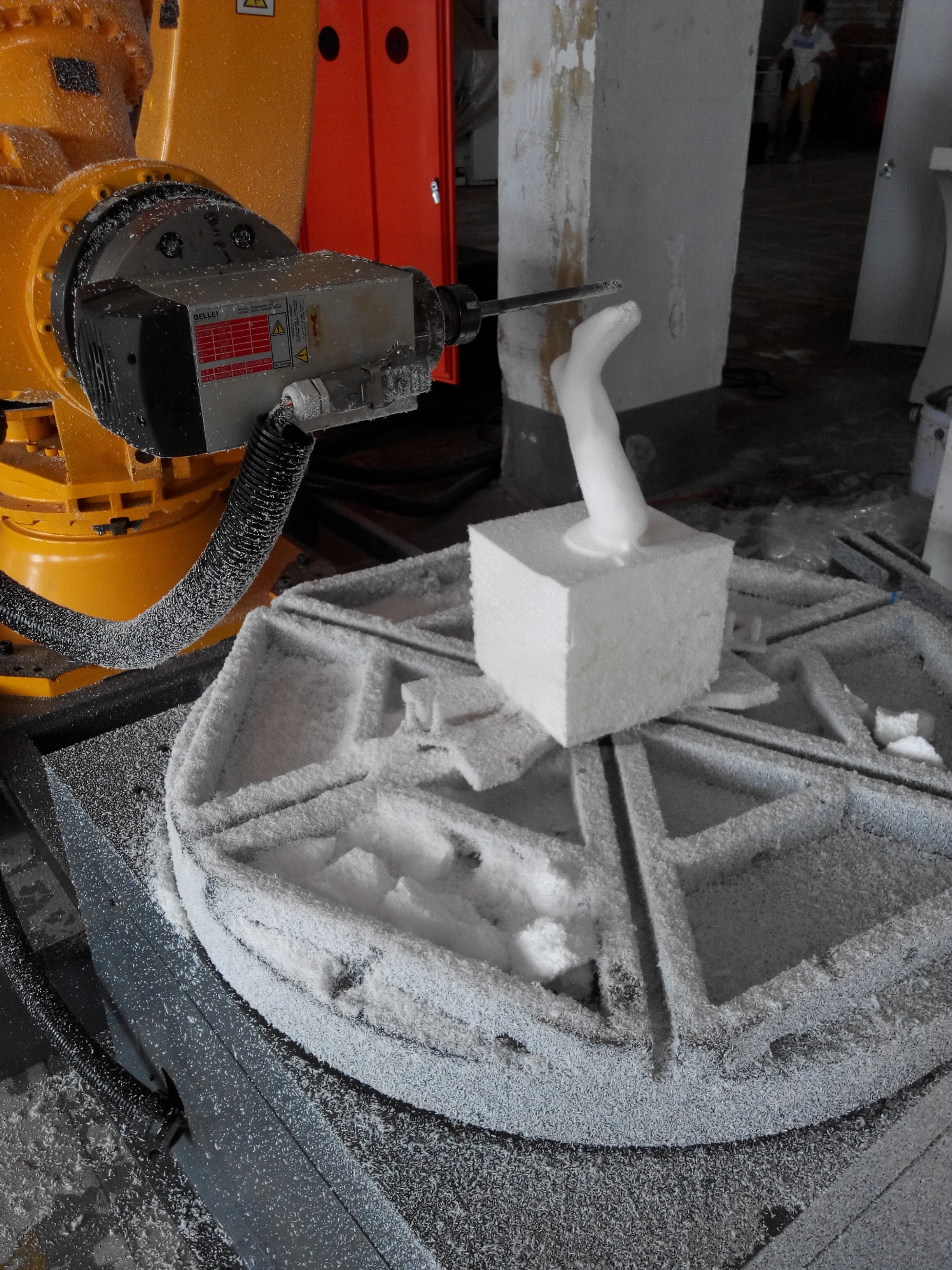

Robots Carve Prosthetic Limbs Foam Engraving Machine medical sculpture Images
