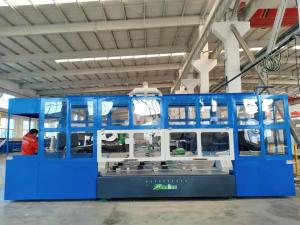

Full Closed Refrigerated Room Car Body Plate CNC Carving Machine 30100

Full-closed refrigerated room car body plate CNC carving machine 30100

Product description:

The large panel processing center is a smart CNC machining equipment specially designed by Sacmi according to the processing needs of many customers. The equipment's machining functions and dimensions support customization. Common models include: 3000mm wide and 10000mm long; 3000mm wide and 12000mm long; and 3000mm wide and 15000mm long.and 3000mm wide and 18000mm long The worktable uses vacuum suction fixtures for clamping, and the table surface is made of phenolic resin board to ensure the flatness and hardness of the table surface, making it easier to fix the panels. There is a layer of steel plate underneath, ensuring the flexibility of the table surface and preventing deformation even with long-term use. The vacuum suction table surface adopts an efficient grid-like vacuum layout, allowing any part of the worktable to quickly adsorb the workpiece.

Processing capabilities:

Capable of processing and cutting various types and sizes of carriage board materials, meeting the processing requirements for different vehicle models, including board trimming, L-shaped recesses, grooves, and processing requirements for side doors. Able to process different types of notches in the board material, including the need for processing inclined and beveled surfaces. Can perform drilling and tapping functions for stainless steel or steel liners, meeting the processing needs for connection holes in the carriage board.

Car Body Plate cnc engraving machines

30100 cnc engraving machines

Vertical cnc engravers

Full Closed Refrigerated Room Car Body Plate CNC Carving Machine 30100 Images
